Carpentry circular saw Holzprofi SCC400-400V

Holzprofi SCC400-400

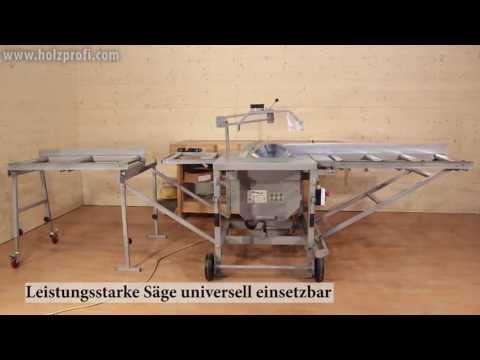

The heavy duty circular saw is suitable for cross cuts and longitudinal cuts. The rotary disc and the tiltable sawblade allow a large variety of applications, such as rafter cutting, ripping, mitre and straight cross cutting. It allows the production of valley- and hip rafter as well as the cutting of gutter boards and wedge blanks.
Solid and easily adjustable saw unit for cutting heights up to 120 mm. Simultaneously adjustable rotary disc (up to 90°) and sawblade (up to 45°)
User-friendly saw unit convenient for various cutting operations. Lever allows for cross cutting, saw unit travels from bottom to top.

technical data:
Table size 715 x 945 mm
Max. sawblade diameter 400 mm
Max. cutting height 90°/45° 120/90 mm
Table height 845 mm
Moveable infeed roller table 1000 x 550 mm
Moveable outfeed roller table 1000 x 550 mm
Speed main sawblade 2800 rpm
Dust extraction outlet 2 x 100
Motor power output S1 2,8 kW (3,8 HP) 400V
Motor power input S6 3,9 kW (5,3 HP), 400V
Dimensions 1350 x 1100 x 1180 mm
Dimensions with roller table 3380 x 1400 x 1180
Weight approx. 210 kg
Bledpfx Asvrv E Uokujp


Standard accessories:
Carbide sawblade 400 x 30 x 3 mm, protective cover with dust extraction outlet, roller table, carriage, tool storage, fixed roller table, splitting wedge
